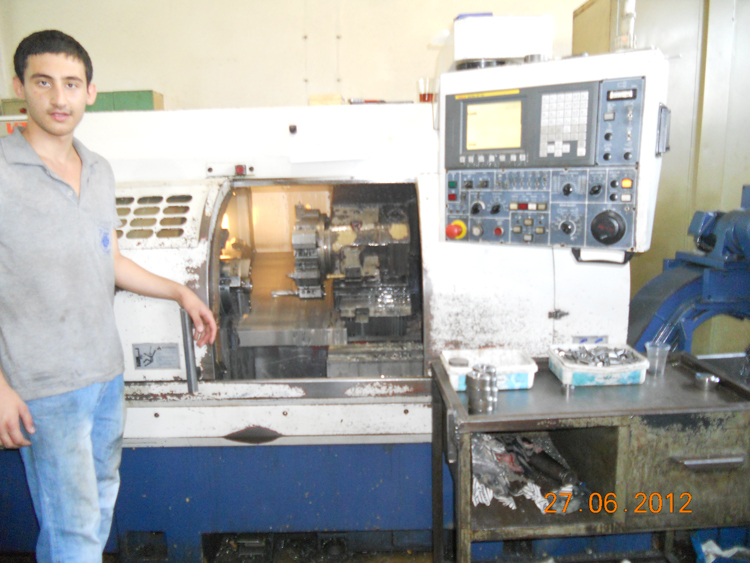

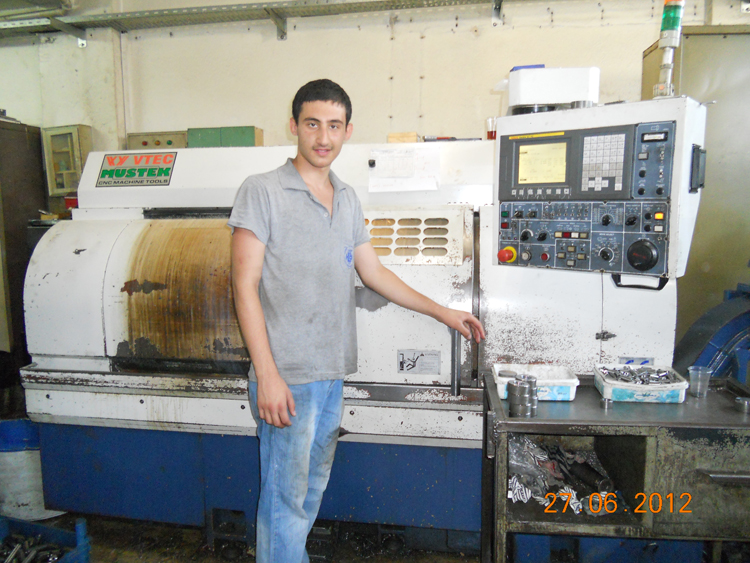

MUSTEK 200L 8'' CNC LATHE 2007
|
 |
TECHNICAL SPECIFICATIONS
| Max. Swing Diameter: |
400 mm
|
| Max. Turning Diameter: |
330 mm
|
| Max. Turning Size: |
540 mm
|
| Ranges between spots: |
590 mm
|
| X-Axis Movement: |
165 mm
|
| Z-Axis Movement: |
590 mm
|
| Hydraulic Headstock with Tripod: |
8''
|
| Revolution(Rev/min): |
4501
|
| Spindle Cone: |
A2-7
|
| Spindle Bore Diameter: |
100 mm
|
| Spindle Hole: |
65 mm
|
| Spindle Bar Capacity: |
52 mm
|
| Station Number: |
8 İstasyon
|
| Tool Dimensions: |
25 mm
|
| Recessing Tool Diameter: |
?32 mm
|
| X Axis Feed Rate: |
20 m/dak
|
| Z Axis Feed Rate: |
Z24 m/dak
|
| Tailstock Quill Diameter: |
?75 mm
|
| Spot Cone: |
MT # 5
|
| Spot Movement: |
500 mm
|
| Tailstock (Spot) Quill Movement: |
80 mm
|
| Spindle motor: |
20 HP (?22P)
|
| Axis motors: |
?C8 3000 i (X,Z-axis)
|
| Hydraulic motor: |
2 HP
|
| Cooling water motor: |
1 HP
|
| Weight: |
3500 kgs
|
| Length x Width: |
2900x2300 mm
|
| Height: |
1800 mm
|
| Control Unit: |
Fanuc Oi-TC
|
|
|
