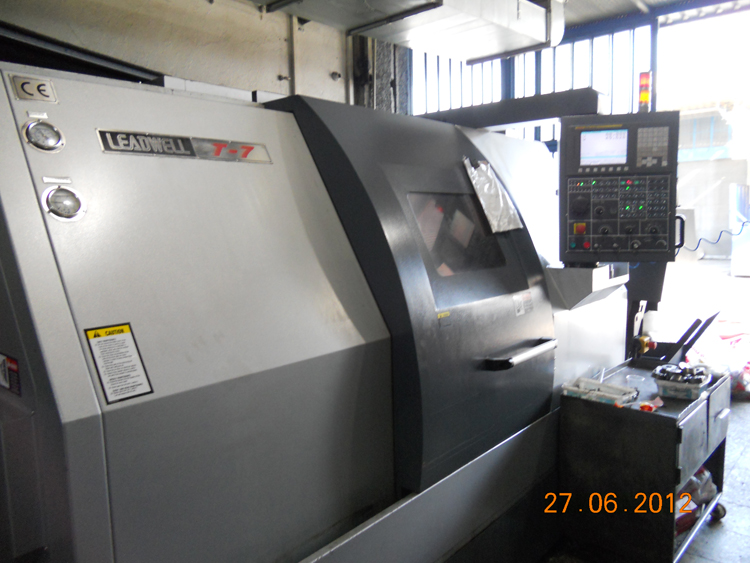

LEADWELL T-7 CNC LATHE
|
 |
TECHNICAL SPECIFICATIONS
Capacity
|
Maximum Swing Diameter
|
520MM |
Maximum Turning Diameter
|
350MM |
| Maximum Turning Size |
540MM |
| Maximum Machinable Bar Diameter |
65MM |
|
Headstock Measurements (8'')
|
Axis Movements
|
|
| X-Axis Movement |
175+25MM |
| Z-Axis Movement |
600MM |
|
Spindle
|
Maximum Revolutions
|
4500RPM |
Spindle Cone
|
A2-6 |
Control Unit
|
0i-mate-TC |
|
Turret
|
Tool Number
|
12 |
Tool Holder Measurement
|
25MM |
Recessing Tool Holder
|
40MM |
|
Feed Rate
|
X-Axis Feed Rate
|
20.000mm/dak. |
Z-Axis Feed Rate
|
24.000mm/dak. |
|
Motors
|
Main Shaft Motor
|
15KW |
X-Axis Motor
|
1.8 KW |
Z-Axis Motor
|
1.8 KW |
Water Pump
|
0.18 KW |
|
Machine Dimensions
|
Machine Weight
|
4540KG |
Machine Height
|
1945MM |
Machine Measurements
|
2800X1565MM |
Total Power
|
30KVA |
|
|
