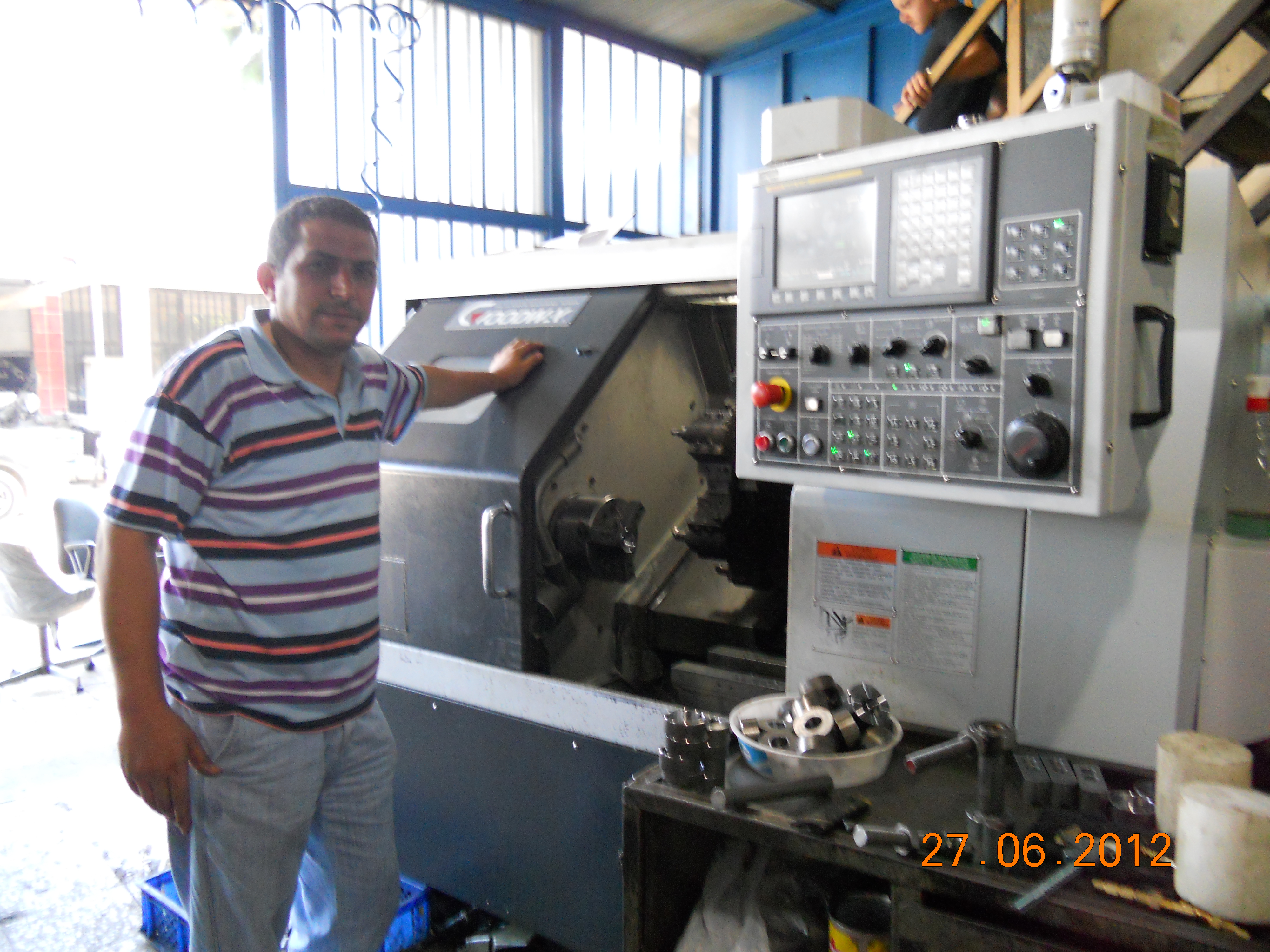

GOODWAY 8'' GA-2000 CNC LATHE
|
 |
STANDARD SPECIFICATIONS
- Hydraulic headstock and puller cylinder
- 5 bar high pressured cooling pump
- LOAD monitor
- Chip conveyor with timer
- Tool resetting arm, automatic
- Tool holders
- Graphic screen
- 1 set of hard 3 sets of soft feet
- Programmable opposite spot
|
| Maximum Swing Diameter |
Ø 580 mm |
| Maximum Turning Diameter |
Ø 350 mm
|
Maximum Machining (Processing) Size (mm)
|
309 | 624 | 1024
|
| Headstock Diameter |
8"
|
| Bar Capacity |
Ø 52 mm
|
| Spindle Hole Diameter |
Ø 66 mm
|
| Spindle Bore Diamater |
Ø 100 mm
|
| Spindle Revolution |
4800 dev./dak.
|
| Spindle Norm |
A2-6
|
| Spindle Power |
11/15 kw Αlpha P22
|
Spindle Connection Type
|
Band
|
| X-Axis Movement |
205 mm
|
| Z-Axis Movement |
350 / 650 / 1230 mm
|
| X Axis Motor Power |
1.6 kw
|
| Z Axis Motor Power |
3.0 kw
|
| X-Z Axis Serial Movement |
20 / 24 m/dak.
|
| X-Z Threaded Rod Diameters |
Ø 32-36 / 10 mm
|
| Slide Structure |
Box
|
| Turret Station Number |
12
|
| Turret Index Time |
0.2 sn
|
| Square Tool Dimension |
25 mm
|
| Round Tool Dimension |
40 mm
|
| Spot Pinhole |
MT-4
|
| Spot Pinhole Diameter / Movement |
Ø 70 / 150 mm
|
| Positioning Accuracy |
0.005
|
Recursion Accuracy
|
0.003
|
| Hydraulic Tank Capacity |
30 L
|
| Cooling Tank Capacity |
200 L
|
| Machine Weight (kg) |
3500 | 4000 | 5000
|
| Positioning Diameter |
1975 x | 2445 x | 3246 x
1630 x | 1630 x | 1630 x
1890 | 1890 | 1890
|
| Control Unit |
FANUC
|
|
AXIS SPECIFICATIONS
|
| Maximum Turning Diameter |
Ø 340 mm |
| Maximum Turning Size |
285 / 550 / 1130 mm |
| Tool Connectivity |
12 Adet |
| Tool Power |
4.5 Kw |
| Collet Measurement |
ER-32 |
| Tool Revolution |
4000 m/rev. |
|
|
